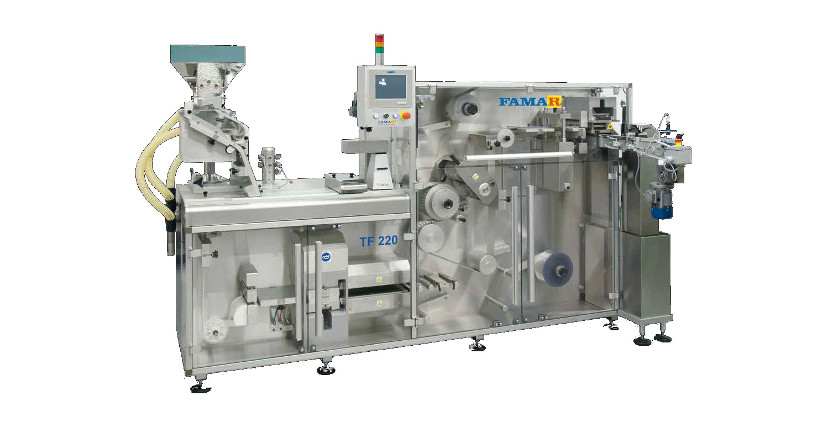

TF220

TF220

Automatic blister machines suitable for medium outputs, featuring a compact design and balcony construction to allow for complete separation of the strictly pharmaceutical zone from machine control components; designed in accordance with GMP standards.

All five main motorised units are controlled by servomotors:
Forming unit
Thermoforming film dragging unit
Roller sealing unit
Film dragging unit up to the cutting zone
Blister coding and cutting unit

Learn more

Size changeover is quick, easy and precise, as all the parameters saved in the panel are set up automatically, without the need to make any manual adjustments.

Operating interface with an intuitive ASEM industrial PC that can be managed via remote connection for online technical support.

Blister outfeed belt in line or at 90° (front or back) for automatic connection to the continuous or alternate motion cartoning machine.

ASSETS
• Compact layout
• Roller sealing system ensures airtight sealing of blister packs
• Ideal for frequent size changeover
• Suitable for packaging of a wide range of products
• Remote support capability

ADDITIONAL MAIN UNITS AVAILABLE:
• Vibrating pre-feeding hopper
• Dedicated or universal automatic feeding, depending on the type of product to be packaged
• Camera for blister pack conformity inspection
• Checking for micro holes in forming aluminium
• Printing of coding/batch number with stamps, ink-jets or other systems
• Online printing of covering material
• Cross punching of blister packs
• Automatic ejection of non-conforming blister packs

Close

Mechanical speed up to 60 cycles / minute
Production up to 250 blisters / minute

(in accordance with blister dimensions and product to be packaged)

Forming materials PVC • PVC-PVDC • PVC-PE-PVDC • PVC-ACLAR • PP • PET • COC • OPA-ALU-PVC
Lidding materials HARD ALU • SOFT ALU • PAPER-ALU • PAPER-PET-ALU • TYVEK
Forming area Pitch 180 mm – Web 160 mm
Max forming depth 12 mm
Motion SIEMENS
Installed power 16 Kw
Compressed air pressure 6 – 8 bar
Average compressed air consumption 200 NL /min
Machine dimensions (LxWxH) 2700 mm x 1240 mm x 1840 mm
Machine weight about 2.300 kg
