Serie RF

RF Series

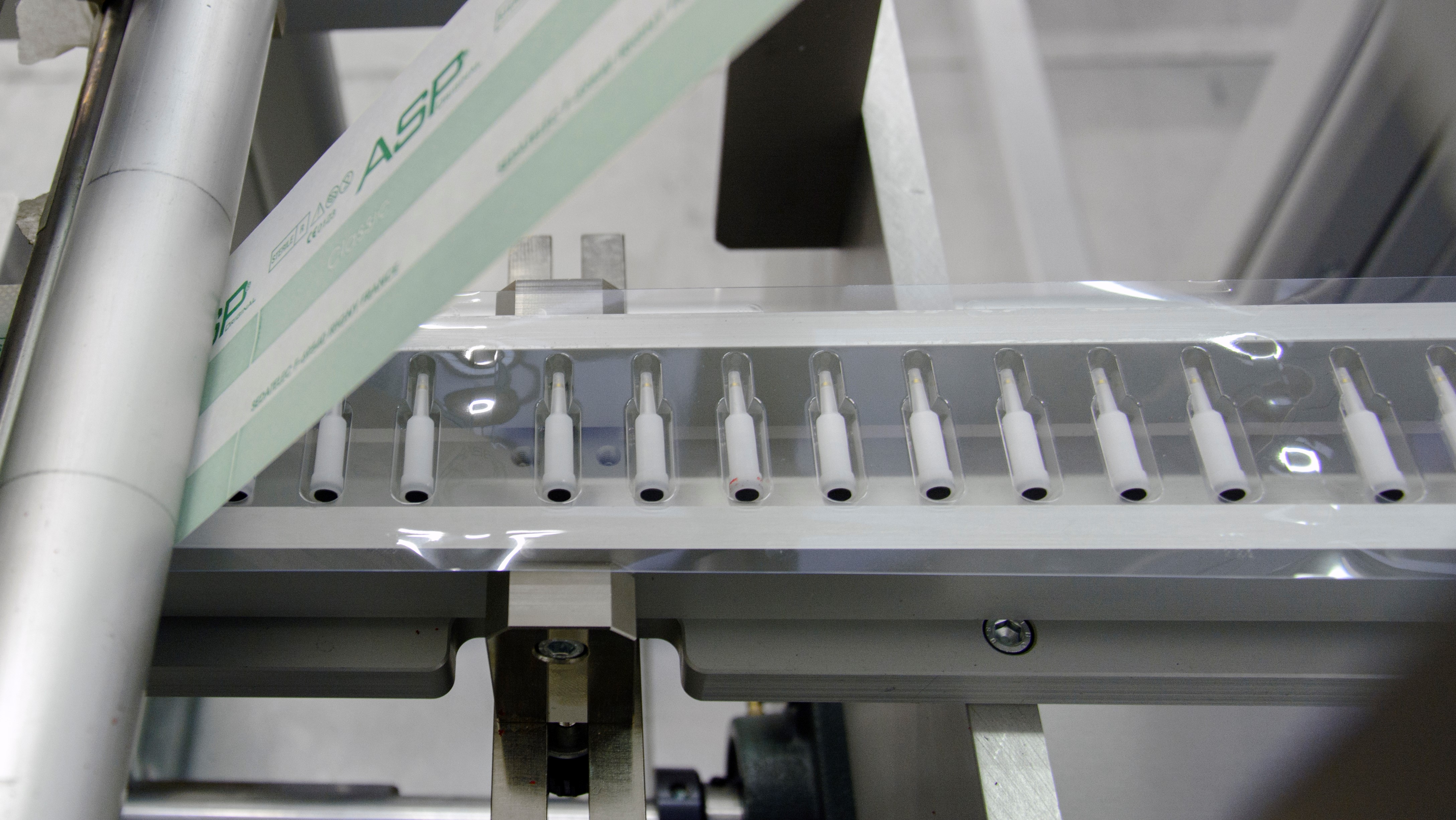

Automatic thermoforming machine for the packaging in trays of syringes, vials, small bottles and products for non-pharmaceutical use.
The machine is available in different versions according to the customer’s requirements:
• Mechanical
• Electronic, driven by servomotors
• With extended belt (RF/S version)
Hybrid mechanical punching and compressed air action forming system.

Learn more

ASSETS
• Length of middle plate can be customised according to the feeding systems used
• Customised feeding systems can be installed for different types of products, e.g. pick & place, robot, etc.
• Remote support capability

ADDITIONAL MAIN UNITS AVAILABLE:
• Pick & place feeding systems
• Tray covering sealing unit
• Camera for tray conformity inspection
• Centring system for printing on covering material
• Printing of coding/batch number with stamps, ink-jets or other systems
• Longitudinal punching of trays
• Automatic ejection of non-conforming trays

Close

Mechanical speed up to 40 cycles / minute
Forming materials PVC • PVC-PVDC • PVC-PE-PVDC • PVC-ACLAR • PP • PET • PE
Lidding materials HARD ALU • SOFT ALU • PAPER-ALU • PAPER-PET-ALU • TYVEK
Forming area 240 x 240 / 300 mm
Max forming depth 40 mm
Motion SIEMENS (electronic version)
Installed power 6/8 Kw mechanical version                          20 Kw electronic version
Compressed air pressure 6 bar
Average compressed air consumption 70 NL /min mechanical version    400/600 NL /min electronic version
Machine dimensions (LxWxH) 3600 min. x 1140 mm x 2160 mm
Machine weight about 2000 kg
