TF120

TF120

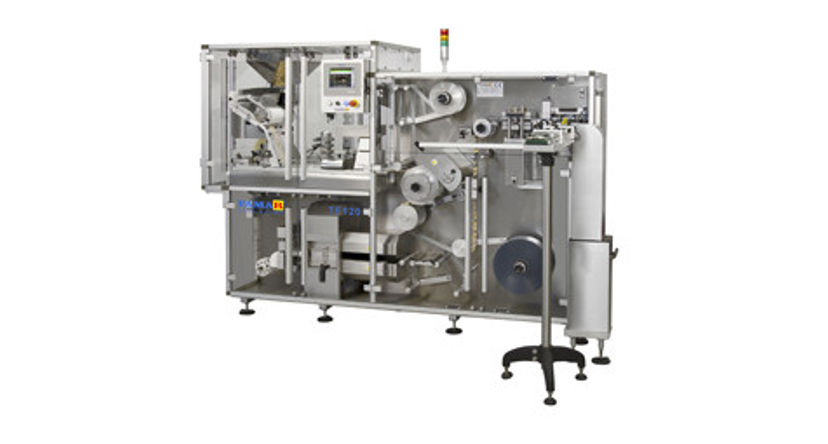

Automatic blister machine, particularly suitable for frequent size changeovers and small batches.
Ultra-compact and easy to fit in small spaces, the TF120 is designed in accordance with GMP standards, with a stainless steel balcony construction and technologically advanced features, despite its small size.

Learn more

The main working stations, driven by servo motors, make size changeover quick, easy and precise, as all the parameters saved in the panel are set up automatically, without the need to make any manual adjustments.

Operating interface with an intuitive industrial PC that can be managed via remote connection for online technical support.

Blister outfeed belt in line or at 90° for automatic connection to the cartoning machine.

HIGHLIGHTS
• Extremely compact layout
• Ideal for small batches and frequent size changeover
• Remote support capability

ADDITIONAL MAIN UNITS AVAILABLE:

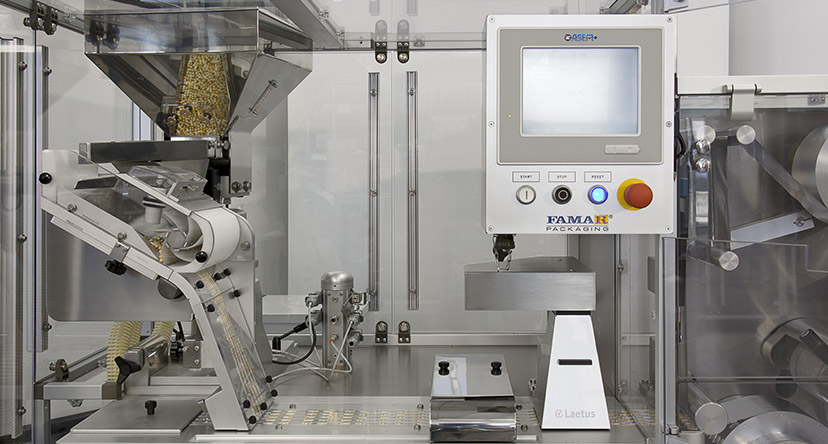

• Vibrating pre-feeding hopper
• Dedicated or universal automatic feeding, depending on the type of product to be packaged
• Camera for blister pack conformity inspection
• Printing of coding/batch number with stamps, ink-jets or other systems
• Automatic ejection of non-conforming blister packs

Close

Mechanical speed up to 60 cycles / minute
Production up to 180 blisters / minute
(in accordance with blister dimensions, packaging material and product to be packaged)
Forming materials PVC • PVC-PVDC • PVC-PE-PVDC • PVC-ACLAR • PP • PET • COC • OPA-ALU-PVC
Lidding materials HARD ALU • SOFT ALU • PAPER-ALU • PAPER-PET-ALU • TYVEK
Forming area Pitch 150 mm – Web 160 mm
Max forming depth 12 mm
Motion SIEMENS
Installed power 22 Kw
Compressed air pressure 6 bar
Average compressed air consumption 200 NL /min
Machine dimensions (LxWxH) 2500 mm x 1240 mm x 1840 mm
Machine weight About 2.000 kg
