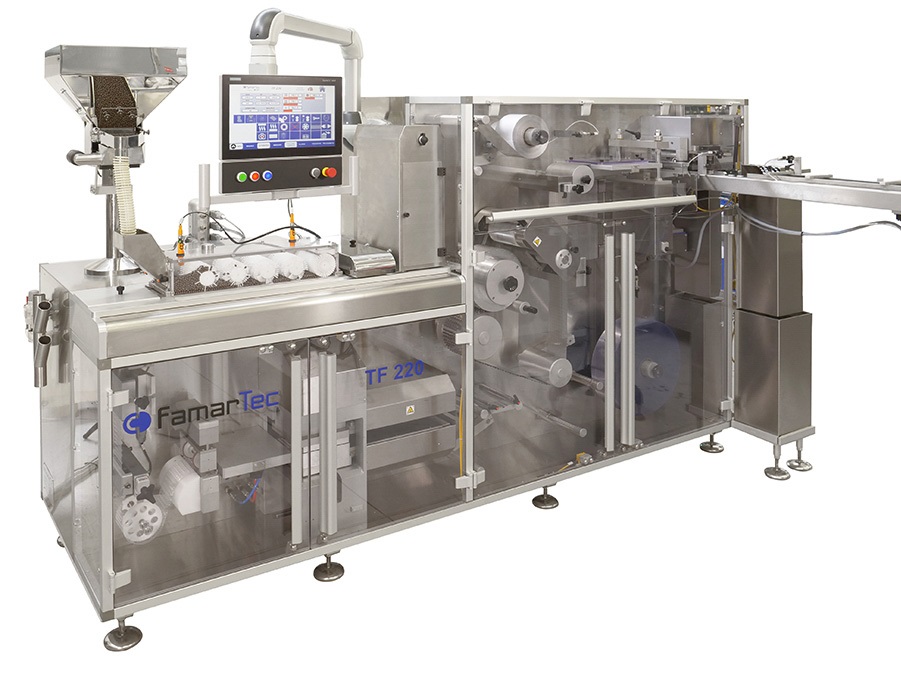

TF220

TF220

Automatic blister machines ideal for medium batches, featuring a compact design and balcony construction, designed in accordance with GMP standards.

Main working units controlled by servomotors:
Forming unit
Film dragging units

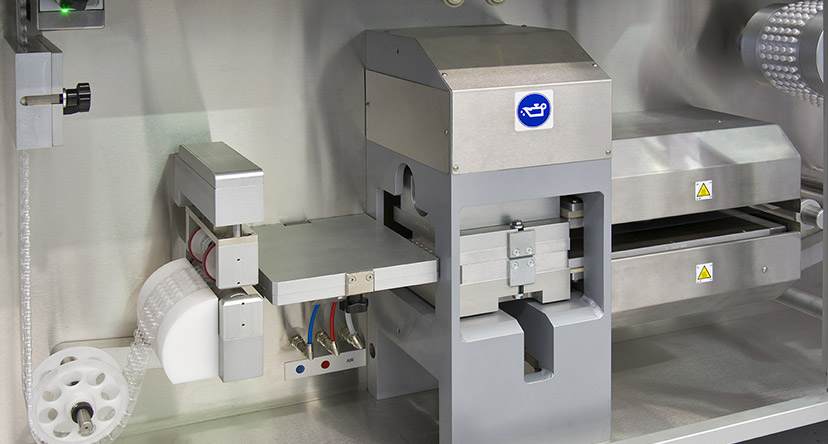

Roller sealing unit
Blister coding and cutting unit

Learn more

A perfect balance between top quality at an affordable price and excellent flexibility in the packaging of solid products.

Operating interface with an intuitive industrial PC that can be managed via remote connection for online technical support.

Blister outfeed belt in line or at 90° (front or back) for automatic connection to the continuous or alternate motion cartoning machine.

HIGHLIGHTS

  • Servo-driven working stations for a perfect blister quality
  • High efficiency due to short cleaning and quick size changeover
  • Compact layout
  • Remote support capability

ADDITIONAL MAIN UNITS AVAILABLE:
• Vibrating pre-feeding hopper

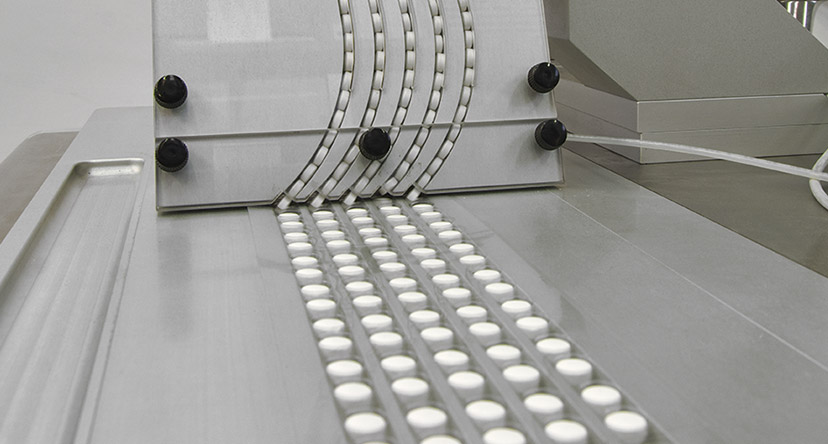

• Dedicated or universal automatic feeding, depending on the type of product to be packaged
• Camera for blister pack conformity inspection
• Checking for micro holes in forming aluminium
• Printing of coding/batch number with stamps, ink-jets or other systems
• Online printing of covering material
• Cross punching of blister packs
• Automatic ejection of non-conforming blister packs

Close

Mechanical speed up to 60 cycles / minute
Production up to 250 blisters / minute

(in accordance with blister dimensions, packaging material and product to be packaged)

Forming materials PVC • PVC-PVDC • PVC-PE-PVDC • PVC-ACLAR • PP • PET • COC • OPA-ALU-PVC
Lidding materials HARD ALU • SOFT ALU • PAPER-ALU • PAPER-PET-ALU • TYVEK
Forming area Pitch 180 mm – Web 160 mm
Max forming depth 12 mm
Motion SIEMENS
Installed power 22 Kw
Compressed air pressure 6  bar
Average compressed air consumption 220 NL /min
Machine dimensions (LxWxH) 2800 mm x 1240 mm x 1840 mm
Machine weight about 2.300 kg
