A330C

A330C

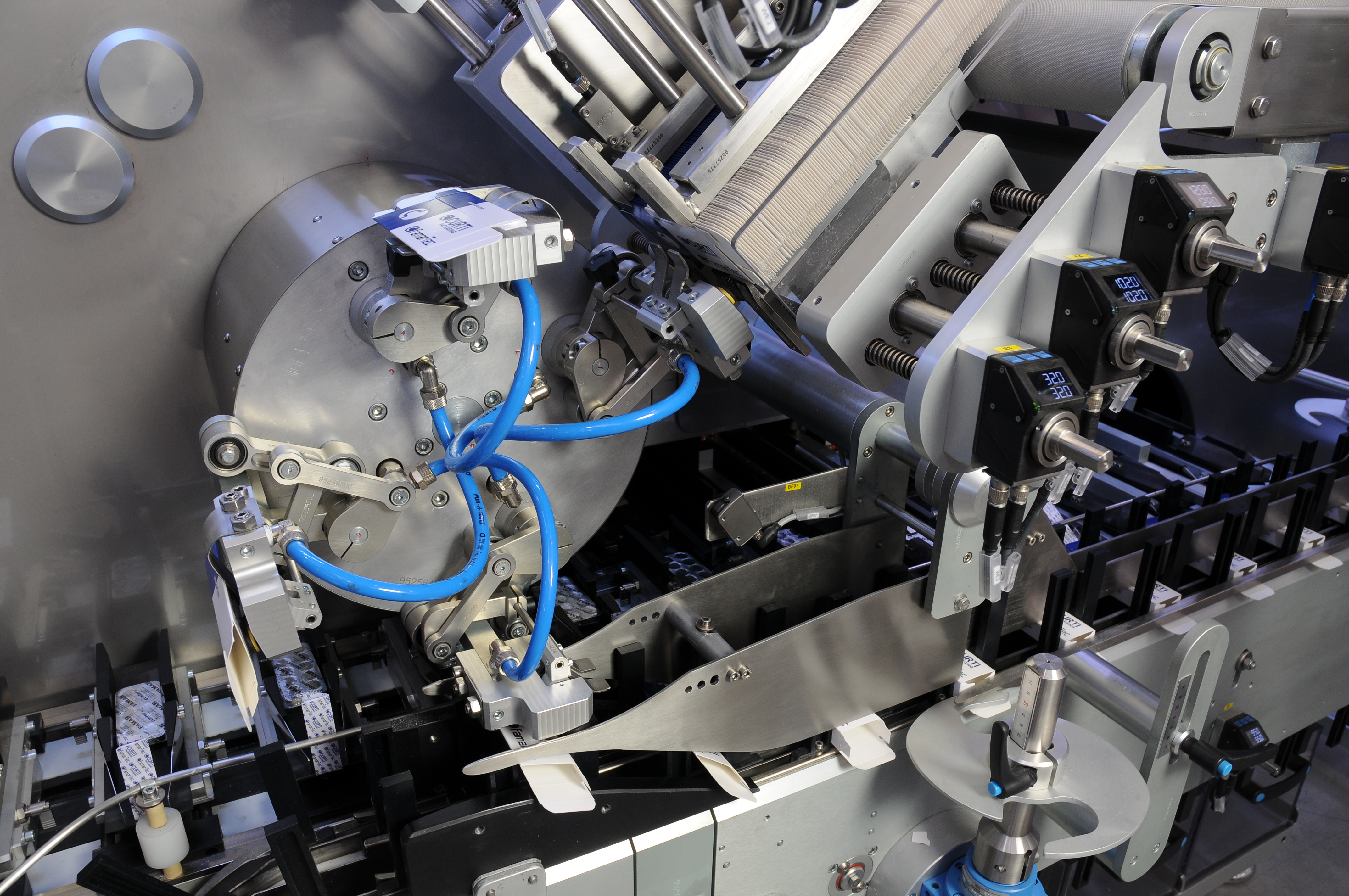

Machine with electronic operation, for the horizontal packaging of products in pre-glued cartons, with tuck in flaps, or flap closure by glue.

With a special attention on consumption, this cartoning machine does not require the use of compressed air (except for external accessories such as, for example, the GUK leaflet folding unit), keeping a more constant motion, reducing the maintenance times and keeping performance unaltered over time.

Learn more

Transmission of internal movements by positive toothed belts, the large capacity cartons magazine (it covers the entire machine’s length), the innovative quick release systems for a fast and simple size change-over, the digital position indicators (optionals), make this cartoning machine the best solution for those who are looking for high technology, reliability and ease of use.

ASSETS

  • Electronic and automatic machine timing, both in start-up and size change-over
  • Low consumption
  • Size change-over facilitated by quick release systems
  • “Full body” machine status LED lights
  • Separate collection bins for product, cartons and leaflets, to avoid external contamination

Close

Mechanical Speed Up to 320 cycles / minute
Production Up to 300 cartons/ minute
Installed Power 6 Kw
Average Consumption 5,5 Kw
Compressed Air Pressure 6 bar **
Average Compressed Air Consumption 0 NL/min **
Overall Dimensions 4760 x 1750 x H1950 mm
Weight ca. 3.200 Kg
** Value determinated without installation of various feeding systems (leaflets, booklets, etc.)
Allowed carton’s dimensions:
MIN MAX
A 25 100
B 12 85
C 65 * 200
A+B 160
* 80 mm with glue closure
