A1

A1

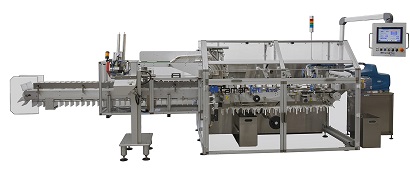

Machines from the A1 series are alternate motion cartoning machines for the horizontal packaging of pharmaceutical products and cosmetics in pre-glued cartons. These machines can be connected to the production line with packaging machines (for blister packs, trays, tubes, small bottles, bags, etc.) or used as stand-alone machines.
The balcony construction ensures operators have full access to the machine.

Learn more

MAIN FEATURES
• Balcony construction
• Slot, glue or combined glue + slot flap closure.
• All stations are managed by brushless motors.
• Set up for the assembly of dedicated feeding units for the product to be packaged.
• Touchscreen control panel with multilingual and icon display
• Operator has full access to the machine for size changeover and/or for standard maintenance operations.

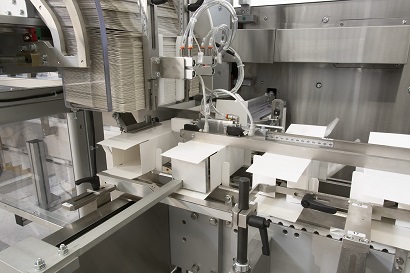

• Adjustable bucket chain and carton transporting chain.

ASSETS
• Compact layout
• Quick size changeover

ADDITIONAL UNITS AVAILABLE
• Instruction leaflet (from pre-folded or flat) and booklet insertion
• Bar code reader
• OCR/OCV reading systems for pre-printed codes and data
• Inspection systems to check for the presence of the brochure and product inside the carton
• Stamp, ink-jet or laser coding systems
• Additional component with tamper evidence systems for glue or label tampering
• Integration with serialisation systems

Close

A1

Mechanical speed Up to 125 cycles/ minute
Production Up to 100 cartons / minute
Motion SIEMENS
Installed power 7,5 Kw
Compressed air pressure 6 bar
Average compressed air consumption 70 NL/min
Machine dimensions 3400 x 1600 x H 1700 mm
Machine weight about 1.750 Kg
Allowed carton’s dimensions:
MIN MAX
A 30 95
B 12 70
C 70 170

A1/S

Mechanical speed Up to 100 cycles/ minute
Production Up to 80 cartons / minute
Motion SIEMENS
Installed power 7,5 Kw
Compressed air pressure 6 bar
Average compressed air consumption 70 NL/min
Machine dimensions 3800 x 1600 x H 1700 mm
Machine weight about 1.900 Kg
Allowed carton’s dimensions:
MIN MAX
A 30 130
B 12 80
C 70 200

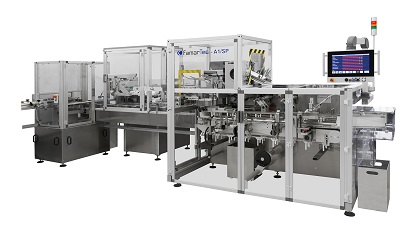

A1/SP

Mechanical speed Up to 90 cycles/ minute
Production Up to 70 cartons / minute
Motion SIEMENS
Installed power 7,5 Kw
Compressed air pressure 6 bar
Average compressed air consumption 60 NL/min
Machine dimensions 4600 x 1820 x H 1700 mm
Machine weight about 2.100 Kg
Allowed carton’s dimensions:
MIN MAX
A 30 170
B 12 95
C 70 220
